Overview

I developed a multimodal robot with Rasberry Pi that can interpret voice commands, control movements, analyze its surroundings, and respond with emotionally expressive speech. This involved integrating three seperate AI models (Speech-to-Text, a Multimodal LLM, and Text-to-Speech) with a Rasberry Pi, controller board, motors, camera, microphone, and speaker.

Hardware Components

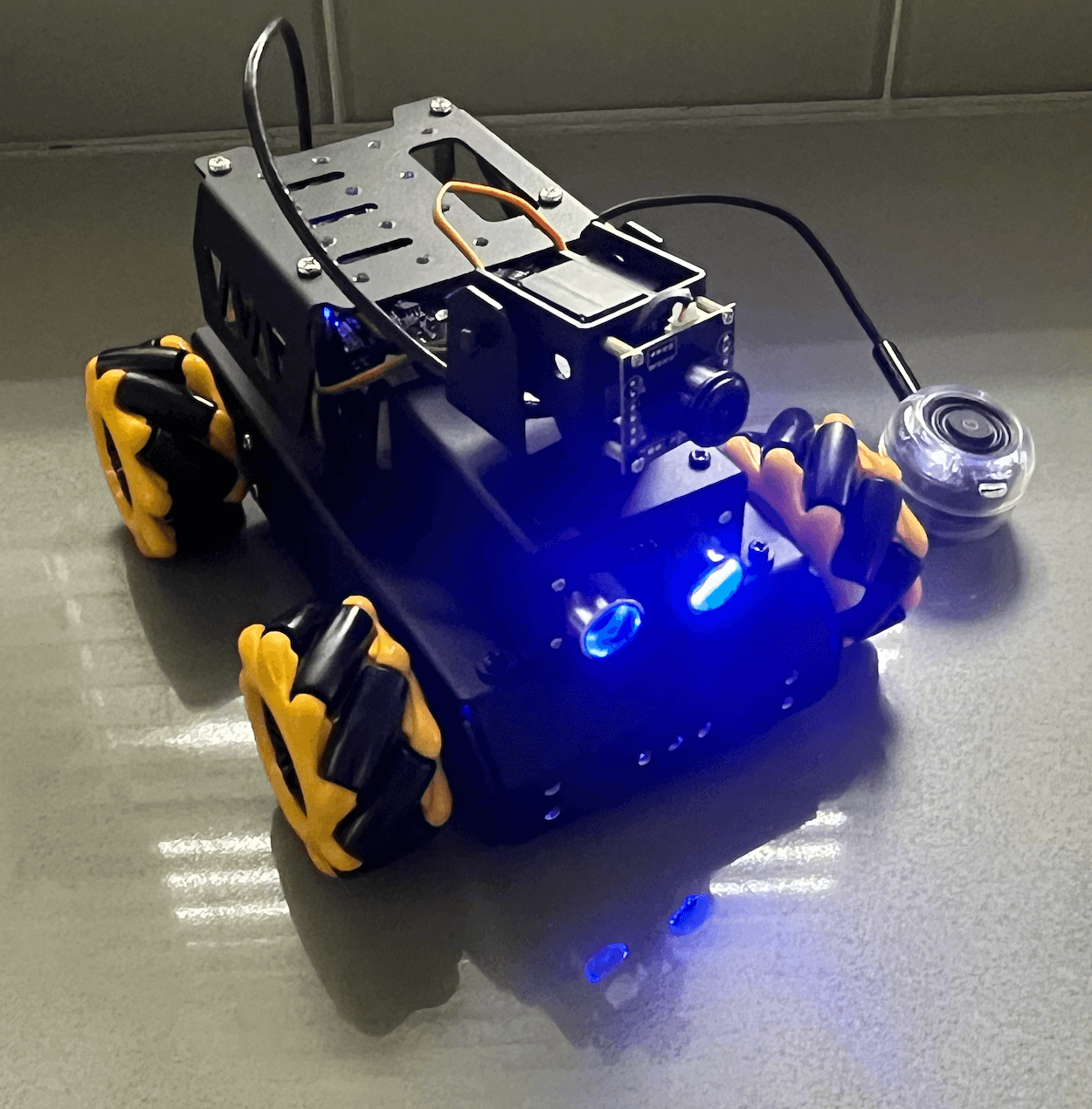

The main hardware component of our robot is a Raspberry Pi—which is, in essence, a tiny computer with HDMI, USB, audio, and network ports. We connect this piece to a controller board provided by the TurboPi Robot kit, which allows us to run software to directly interface with the other hardware components.

The controller board attaches to three other components provided by the kit:

7.4V lithium battery pack
4 TT DC gear motors (and wheels)
Rasberry Pi Camera Module

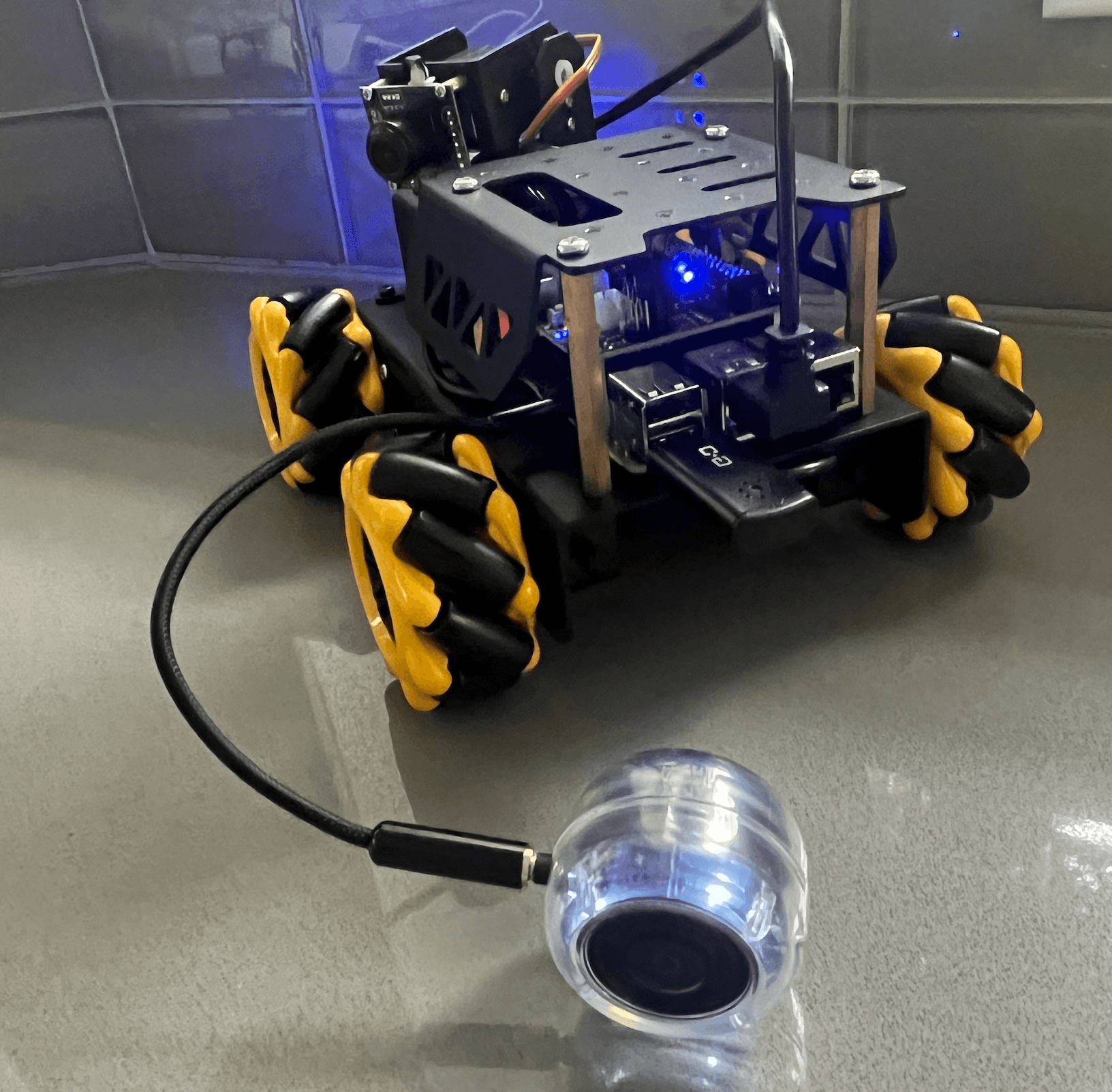

These are mounted on a frame, and then attached to two additional components:

Mini USB microphone (audio input)
Mini Speaker (audio output)

Finally, we use an SD card to load an operating system onto the Raspberry Pi, along with a configuration to automatically connect with home WiFi. After connecting, we're able to access it directly through SSH, allowing us to write our software to directly control the hardware components.

Software Implementation

We use GPT-4o as our language model, as it provides strong multimodal capabilities (ability to understand images without the need for an addition model) and an easy framework for adding function calls, allowing it to autonomously activate scripts to control the robot:

assistant = client.beta.assistants.create(
    name="VoiceBot",
    instructions="You are Jarvis, Bobby's fun AI robot.",
    model="gpt-3.5-turbo",
    tools=[
        {
            "type": "function",
            "function": {
                "name": "move_forward",
                "description": "Move forward for a number of seconds.",
                "parameters": {
                    "type": "object",
                    "properties": {
                        "t": {
                            "type": "number",
                            "description": "Duration in seconds"
                        }
                    },
                    "required": ["t"]
                }
            }
        },

The main loop combines GPT-4o with two other components: a speech-text model, to convert voice commands to text, and a text-to-speech model from Hume AI, which generates emotionally expressive audio output from GPT-4o responses:

async def speak_with_hume(text):
    utterance = PostedUtterance(text=text, voice=voice, description="Jarvis voice")

    with get_audio_player() as player:
        async for snippet in hume_client.tts.synthesize_json_streaming(
            utterances=[utterance],
            format=FormatPcm(type="pcm"),
        ):
            player.send_audio(base64.b64decode(snippet.audio))

def get_transcript():
    with mic as source:
        recognizer.adjust_for_ambient_noise(source, duration=0.3)
        try:
            audio = recognizer.listen(source, timeout=3, phrase_time_limit=3)
            return recognizer.recognize_google(audio, language="en-US")
        except Exception as e:
            print(f"Error: {e}")
            return None

async def run_conversation():
    while True:
        try:
            transcript = get_transcript()
            if not transcript:
                continue
            print(f"You said: {transcript}")

            client.beta.threads.messages.create(
                thread_id=thread.id,
                role="user",
                content=transcript
            )
            run = client.beta.threads.runs.create_and_poll(
                thread_id=thread.id,
                assistant_id=assistant.id
            )

            if run.required_action:
                for call in run.required_action.submit_tool_outputs.tool_calls:
                    if call.function.name == "move_forward":
                        move_forward(call.function.arguments.t)
                    elif call.function.name == "capture_and_analyze_image":
                        success, description = await capture_and_analyze_image(client)

            new_messages = client.beta.threads.messages.list(
                thread_id=thread.id,
                order="desc",
                limit=1
            )
            reply = new_messages.data[0].content[0].text.value.strip()
            await speak_with_hume(reply)

        except KeyboardInterrupt:
            print("\nShutting down.")
            break

Each loop, GPT-4o can autonomously run Python functions defined with imports, allowing it to move and take pictures. These utilize modified functions from the fast-hiwonder GitHub repository (for movement) and the python OpenCV library (for camera access):

async def capture_and_analyze_image(client):
    try:
        # Configure camera settings
        subprocess.run(['v4l2-ctl', '-d', '/dev/video0', '--set-fmt-video=width=640,height=480,pixelformat=YUYV'])
        subprocess.run(['v4l2-ctl', '-d', '/dev/video0', '--stream-mmap', '--stream-count=1', '--stream-to=test_image.raw'])

        # Convert raw image to jpg
        subprocess.run([
            'ffmpeg', '-f', 'rawvideo',
            '-vcodec', 'rawvideo',
            '-s', '640x480',
            '-pix_fmt', 'yuyv422',
            '-i', 'test_image.raw',
            '-vf', 'hflip,vflip',
            '-f', 'image2',
            '-vcodec', 'mjpeg',
            '-y', 'test_image.jpg'
        ])

        # Clean up raw file
        subprocess.run(['rm', 'test_image.raw'])

        # Encode image for GPT-4o
        with open('test_image.jpg', "rb") as image_file:
            base64_image = base64.b64encode(image_file.read()).decode('utf-8')

In the future, I will be trying to develop a multi-agent system to allow the AI to interpret and execute higher-level tasks. Instead of directly listening to and responding to a single command at a time (ie, 'move forward'), the aim is for it to be able to execute something more abstract ('find the kitchen') and then execute a series of functions to complete it (involving movement, taking pictures, processing information). As robotics becomes more accessible, all of this NLP stuff is about to get a lot cooler!
